3Ply Corrugated Cardboard Production Line
single wall corrugated machines
single wall corrugated machines
single wall corrugated machines
single wall corrugated machines

Standard 3Ply Corrugated Cardboard Production line

  • Standard corrugated line design with limit investment.
  • Flexible production for all kind of the corrugated cardboard.
  • Easy maintain and avaliable for future upgrade.
  • Brand:

    WEST RIVER
  • Goods Stock:

    1
  • Product Origin:

    China
  • Color:

    Customized
  • Shipping Port:

    Shenzhen/Guangzhou

Intelligent 3Ply Corrugated Cardboard Production Line



Standard 3Ply Corrugated Cardboard Production line

Cardboard thickness:  3Ply (2ply, 3ply can be made)

Width: 1200-2500mm

Speed: 120-200meters/min

Traditional standard design

high quality cardboard production



Features:

Standard corrugated line with middle speed

• Profibus + inverter control system, intelligent corrugated cardboard line. Normal use cassette type or fix type single facer.
• Speed 120-200m/min, width 1200-2500mm.
• Standard design Capacity:  order changes with production over 350,000 m2 in 24 hours
• Average speed: Single Layer production: 150m/min, Double Layer production: 120m/min
• Low investment and flexible production for different kind of thickness cardboard.
• It's easy to upgrade the automatic level in the future if needed.
• Can be customized according to different customer's situation



Product Show

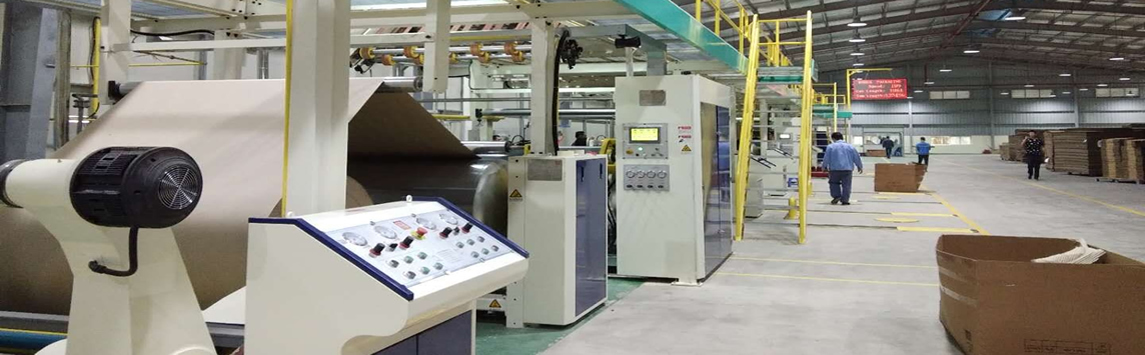

Economic corrugated line wet end



Economic line double facer



Economic line conveyer stacker



FAQs

1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer combined with WEST RIVER, KL&Japan Shinko, Nantai & Japan Asahi, Jiayi, Guanwei, Jinshun brand machines.

2Q: Where are your factory located in ?
A: Our factories located in Shanghai, Guangzhou, Foshan, Zhaoqing Cities in China

3Q: How to choose the corrugated machine ?
A: According to your market requirement for the cardboard thickness, your target requirement, raw material size, we will give you the best choice of the corrugated machine.

4Q: What can you do for me?
A: Usually the customer need to choose the corrugated machine, flexo printer, die cutter and other converter machine separately by different supplier, but we will give you the whole plan design solution from A to Z, what you need to do is just tell us your target, then you will get the most suitable proposal from us.

5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution, We have professional technicists to supervising to production, Our professional department to examine about every production process

6Q:What can you do if the machine face problem?
A: We provide the machine remote service system, and the warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we will charge for the maintanance, and we supply the technical support for the whole life of the equipment.
